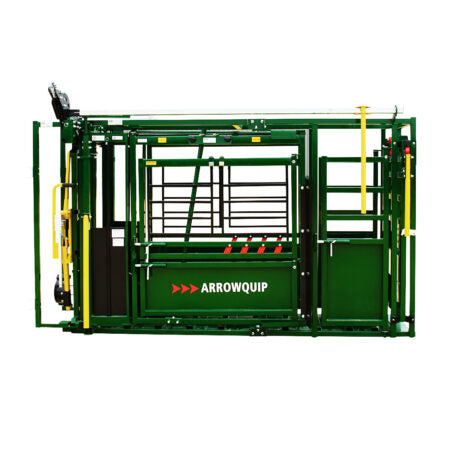

Arrowlock 55 Series Cattle Chute

Arrowlock 55 Series Cattle Chute is engineered for small-scale and emerging cattle operations that value safety, control, and affordability. Featuring a ratchet-lock head gate and durable steel construction, it delivers a dependable squeeze chute experience.

FEATURES

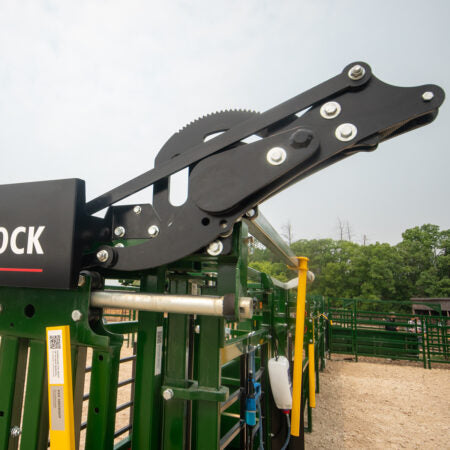

Industry-Strong Ratchet Head Gate

Ratchet-style locking head gate offers secure holding power. Designed with 3E principles, allowing cattle to see light through the gate, which gently encourages entry and improves flow.

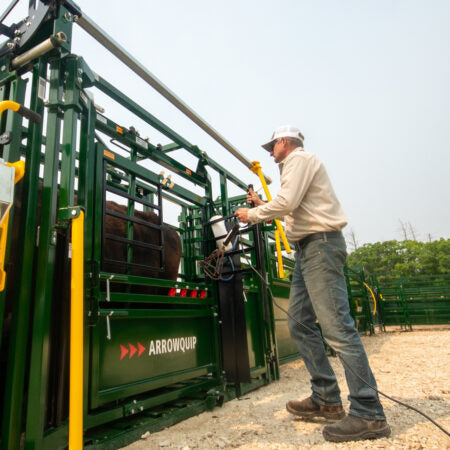

Easy Access & Safe Handling

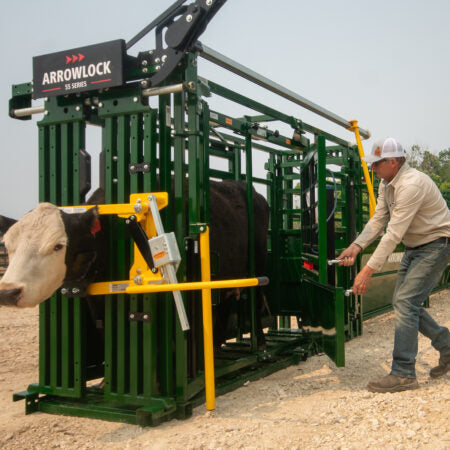

Includes a one‐side swing-out emergency exit, 12.75″ drop-down needle access, and optionally a Deluxe Vet model with a full-length palpation cage. Ideal for safe cattle work of all types.

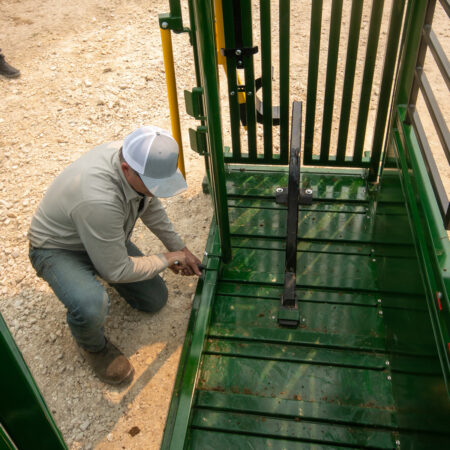

Quiet, Slip-Resistant Floor

Solid steel floor with ½″ tread pattern ensures reliable traction and quiet operation under hoof. Built tough to withstand regular use.

Universal Fit for All Sizes

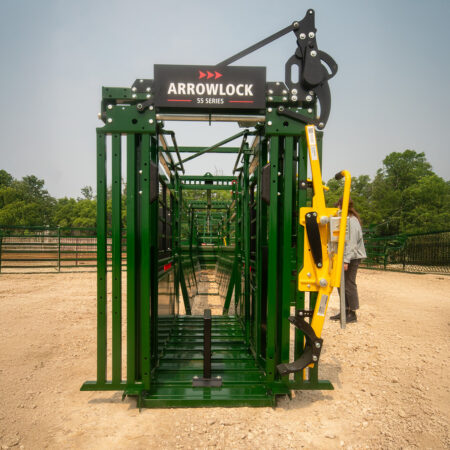

Curtain-style head gate opens parallel to a full 29.5″, with squeeze ranging from 31.5″ fully open to 7.75″ fully closed—capable of handling everything from calves to bulls.

SPECIFICATIONS

• Product Code: 5500
• Warranty: 5 years (lifetime on locking mechanisms & rump fingers)
• Ratchet locking head gate with 3E light-guiding design
• Curtain-style head gate opens to 29.5″ parallel
• Squeeze range: 31.5″ open → 7.75″ closed

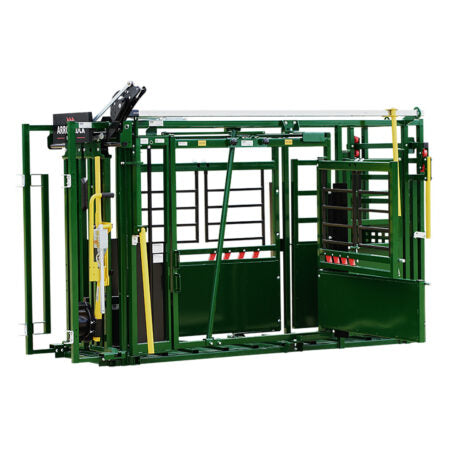

• One-side swing-out emergency exit
• Poly-composite rump fingers plus top-access rump bar

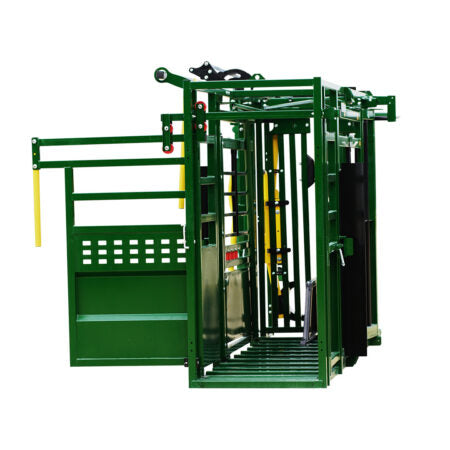

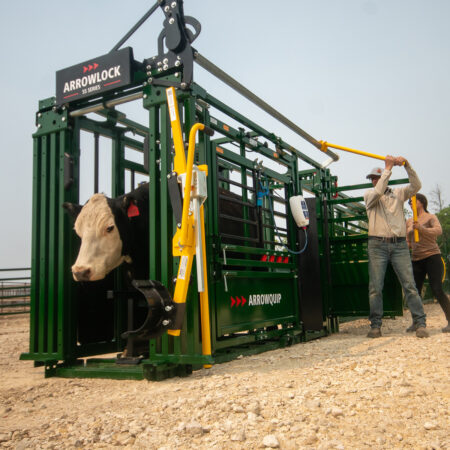

• 3E rolling door with top-mounted track to prevent build-up

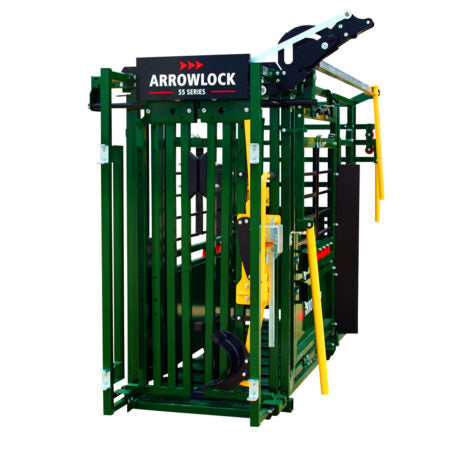

• Full 180° vet door (Deluxe Vet only)

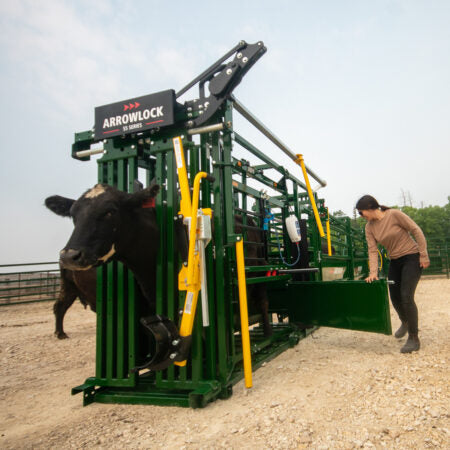

• 12.75″ vertically drop-down needle access
• Rectangular tubing to reduce bruising
• Ribbed steel floor for traction

AVAILABLE MODELS

AVAILABLE ADD-ONS / OPTIONS

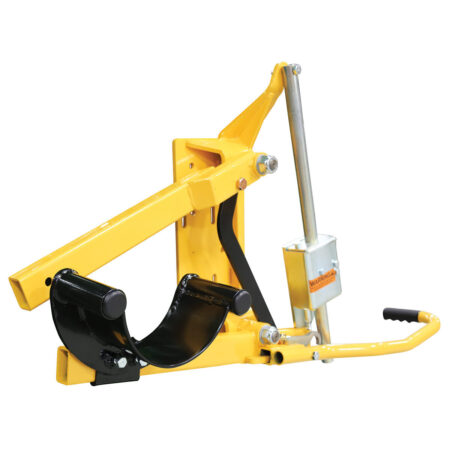

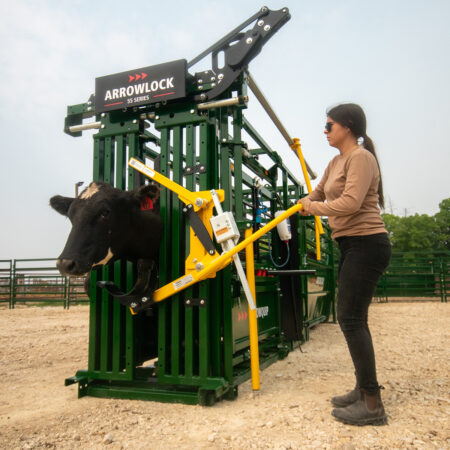

Fourth-Generation Cattle Head Holder

Single-lever head restraint that mounts to the head gate for safe close-up procedures.

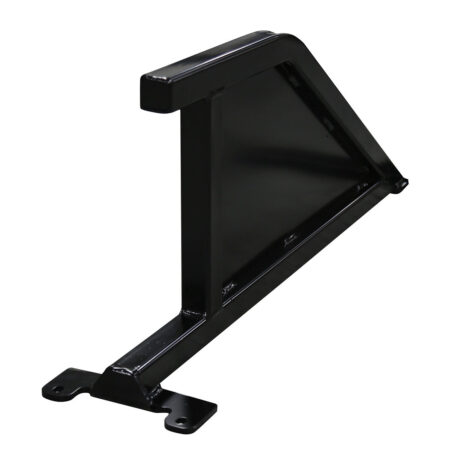

Sternum Bar

Supports the animal’s chest and eliminates space at the bottom of the chute; sheeted to prevent hoof entrapment.

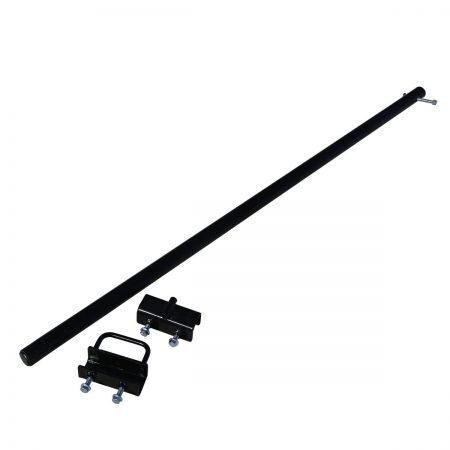

Calf Restrainer Bar

Keeps calves secured during hoof trimming when side doors are open.

Cattle Balk Gate

Prevents escapes if livestock misses the head gate—enhances control.

Lug Post Kit

Bolt-on posts to connect corral panels directly to the head gate for expanded handling setups.
