Arrowlock 88 Series Cattle Squeeze Chute

Arrowlock 88 Series Cattle Squeeze Chute is the first manual chute engineered to deliver superior holding force with minimal operator effort. With the new Arrowlock head gate, an infinite true rubber floor, and full-cattle access, it’s built for faster, safer, low-stress handling.

FEATURES

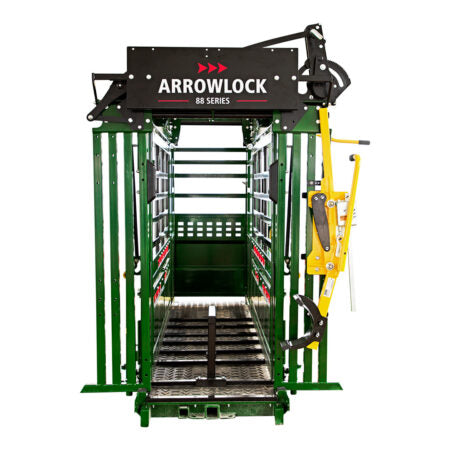

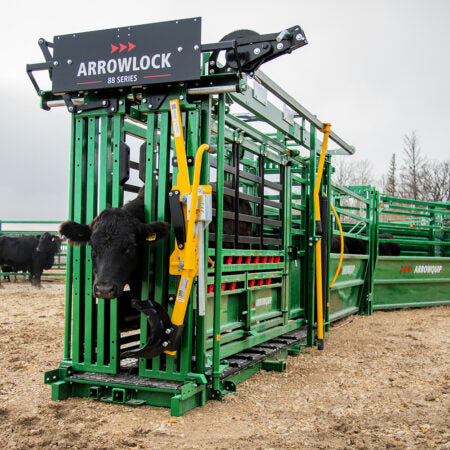

The Industry’s Strongest Head Gate Hold

The Arrowlock head gate provides three adjustable settings to secure any size of livestock, from small calves to big bulls. The barred design works with natural cattle behavior to draw animals into the chute for easier captures.

Industry-Leading Warranty

Backed by a 15-year chute warranty. The virgin rubber floor, rump fingers, and locking mechanisms carry lifetime coverage for long-term peace of mind.

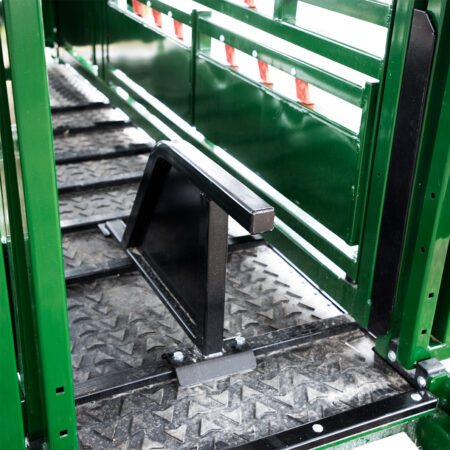

True Rubber Infinite Cattle Chute Floor

The floor uses true virgin rubber and an infinite design that helps cattle exit smoothly and makes cleaning simpler, while also reducing noise to keep stress low.

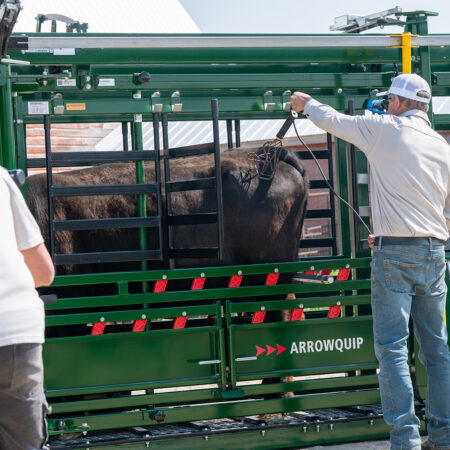

Unlimited Access to Your Cattle

Three drop-down panels per side, split bottom access doors, and full emergency exits on both sides provide comprehensive access for faster processing.

SPECIFICATIONS

• Product Code: 8800
• Weight: 2,768 lbs
• Dimensions: 35.5″ W × 95″ H × 145″ L
• 15-year chute warranty
• New ratchet-locking head gate with multiple settings
• Head gate handle usable at any point along the chute
• Curtain-style head & tail gates open to a full 31.5″ (top to bottom)

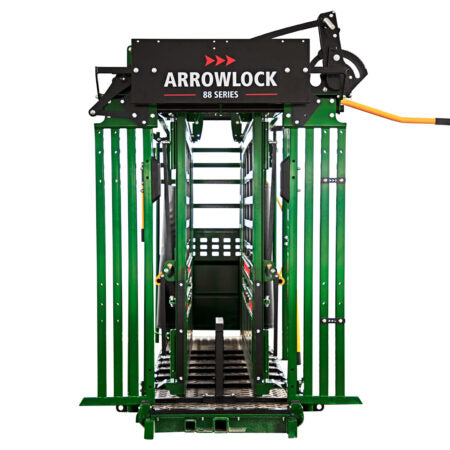

• Squeeze range: 31.5″ fully open to 7.75″ fully closed
• Two rows of rump fingers
• Ambidextrous rolling door (operable from either side)
• Vet door opens a full 180° in both directions
• Six removable side access panels (configurable)
• Removable split bottom access gates

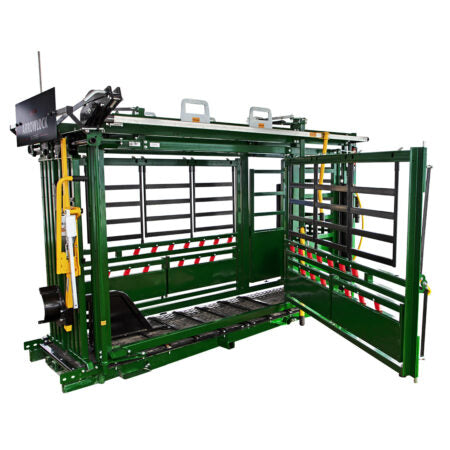

• Full swing-out emergency exit
• Standard traction bars
• 6.5″ neck injection opening
• True virgin rubber infinite floor for quiet traction
• Mount brackets for load bars or bolting to concrete
• Transport-ready with optional wheel
