Arrowlock 88 Series Portable Cattle Chute, Alley & Tub
by ArrowQuip
SKU 8818
Original price
$41,500.00
-
Original price
$41,500.00
Original price
$41,500.00
$41,500.00
-
$41,500.00
Current price
$41,500.00
✓ Authorized Dealer
✓ For Questions Call +1 (800) 555-5555
✓ Manufacturer's 1 Year Warranty

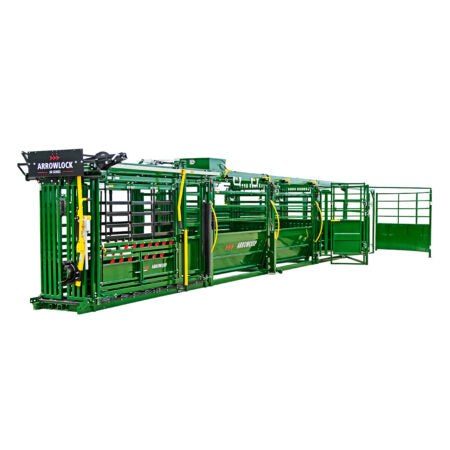

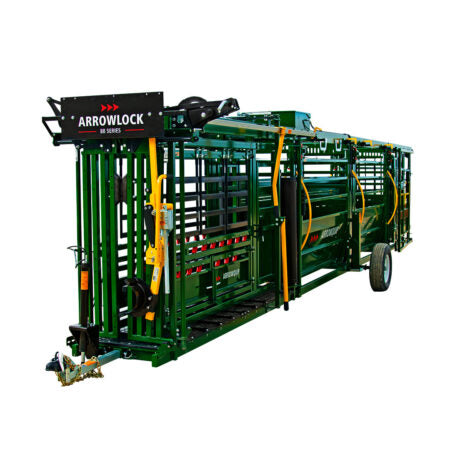

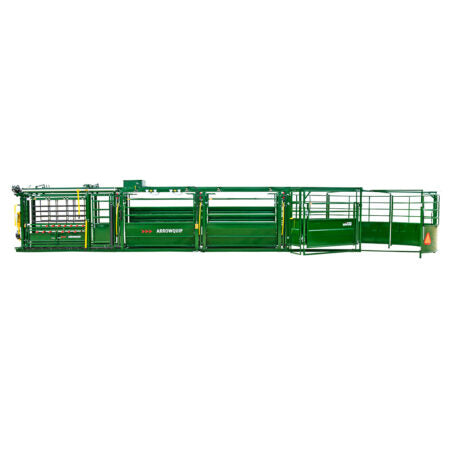

Arrowlock 88 Series Portable Cattle Chute, Alley & Tub combines the new Arrowlock 88 manual squeeze chute, an 18′ Easy Flow adjustable alley, and a collapsible cattle tub in one towable, quick-setup unit. Designed for low-stress flow, it integrates 3E components from front to back with a heavy-duty North American steel frame for reliable field use.
FEATURES

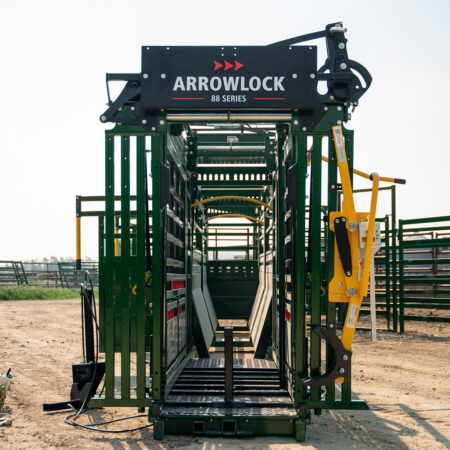

Arrowlock 88 Series Manual Cattle Chute
New Arrowlock head gate with powerful ratchet lock, 3E design elements to encourage entry, and multiple side access points for faster, safer handling.

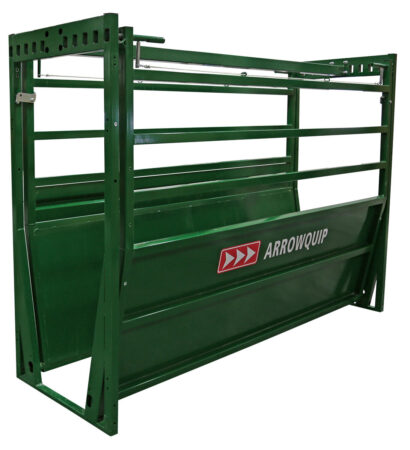

18′ Easy Flow Adjustable Cattle Alley
Extra-long alley for smoother cattle movement with fewer stops. Removable panels let you control animal visibility and guide flow effectively.

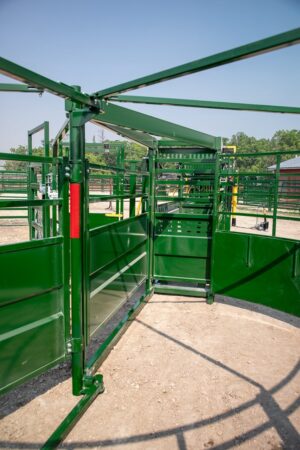

Compact Collapsible Cattle Tub
Welded joiner bars for quick setup and takedown. Tub folds in on itself, reducing towing length by up to 5′ 8″ for safer, more compact transport.

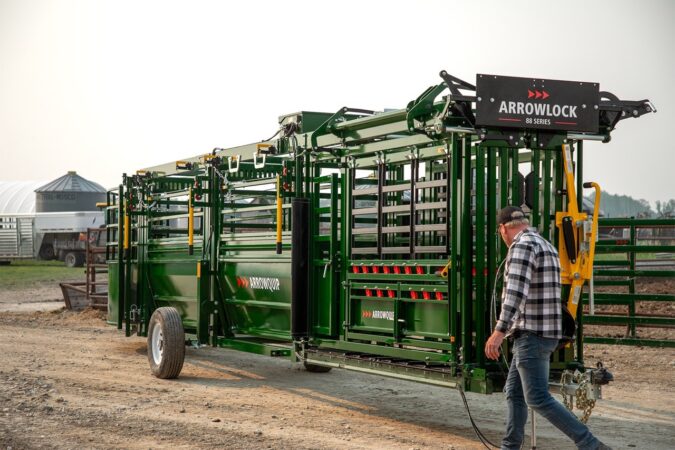

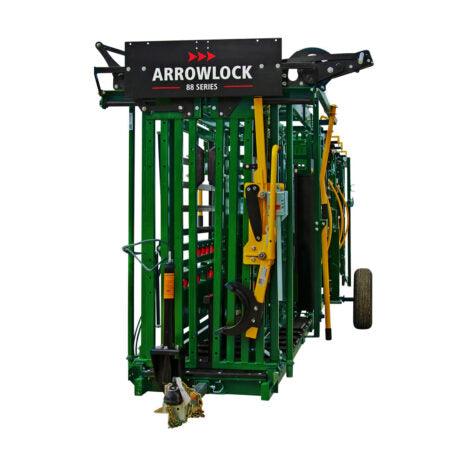

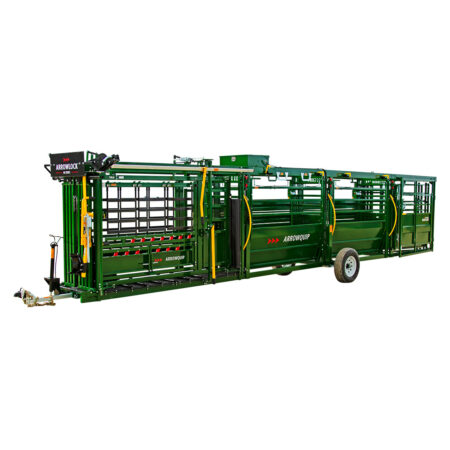

Secure Transport Solution

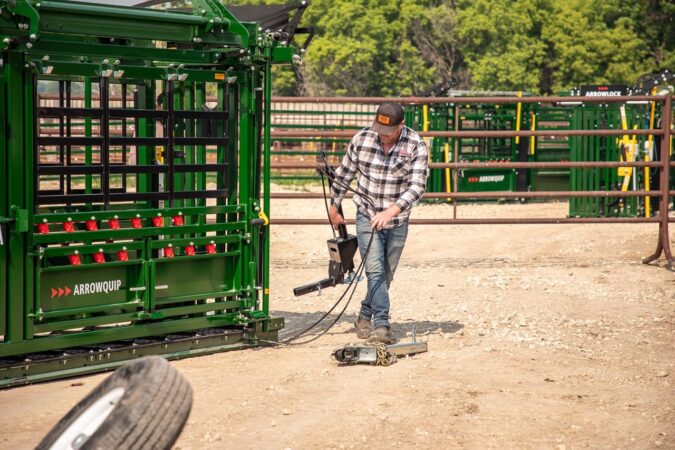

Heavy-duty frame with manual jacks for easy lifting/lowering. The entire unit folds into a compact package for safe transport.
SPECIFICATIONS
- 3E Head Gate uses light to draw cattle forward
- Arrowlock Head Gate with adjustable settings for different livestock sizes
- Head gate handle can be operated from anywhere along the chute
- Parallel squeeze range: 31.5″ open to 7.75″ closed
- Poly-coated slam latches eliminate metal-on-metal noise
- Two rows of poly-composite rump fingers
- 3E rolling door operable from either side; top rail prevents debris buildup

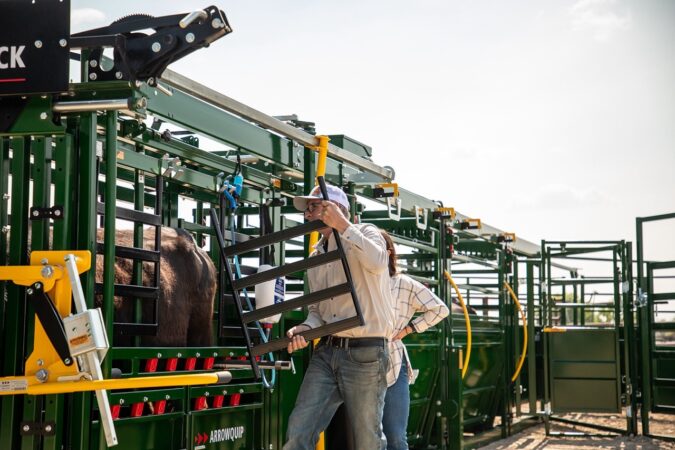

- Six removable side panels per side, fully configurable
- Lifetime-guaranteed virgin rubber floor for secure footing
- 6.5″ neck access opening
- Easy Flow Alley adjustable from either side with removable panels
- Collapsible tub with welded joiner bars for compact towing
AVAILABLE MODELS
| Model | Weight | Dimensions (Set Up) | Towing Dimensions (with wheels & hitch) |
|---|---|---|---|
| 3E BudFlow® | 6,307 lbs | 180″ W × 95″ H × 549″ L | 82″ W × 107″ H × 483″ L |
| Crowding Tub | 5,949 lbs | 103″ W × 95″ H × 549″ L | 82″ W × 107″ H × 483″ L |
AVAILABLE ADD-ONS / OPTIONS

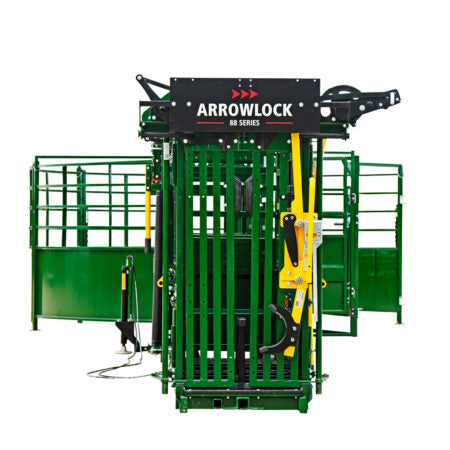

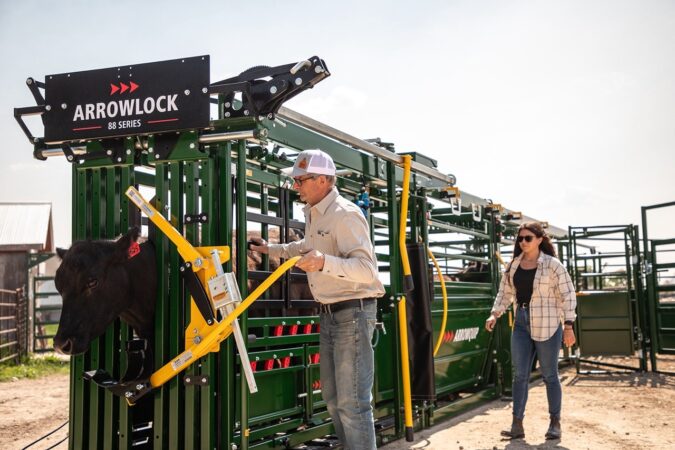

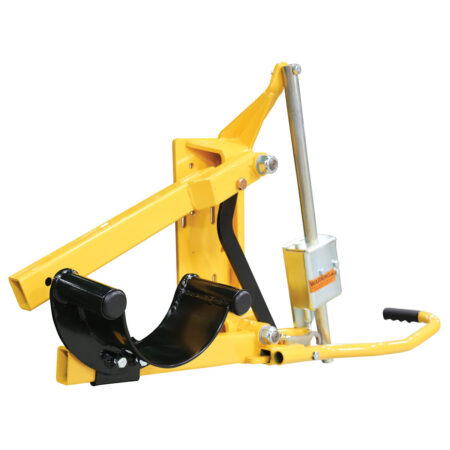

Fourth-Generation Cattle Head Holder
Single-lever push-pull head restraint, stronger and more stable, mounts directly to the head gate for close-up work.
Sternum Bar
Supports the animal’s chest and eliminates space at the chute bottom to prevent lying down; sheeted to reduce hoof traps.
Balk Gate
Prevents escapes if an animal misses the head gate, maintaining a controlled environment.
Wheel Kit
Adds portability to the chute, installs quickly for towing.
Lug Post Kit
Bolt-on posts to connect panels or sorting modules directly to the head gate.

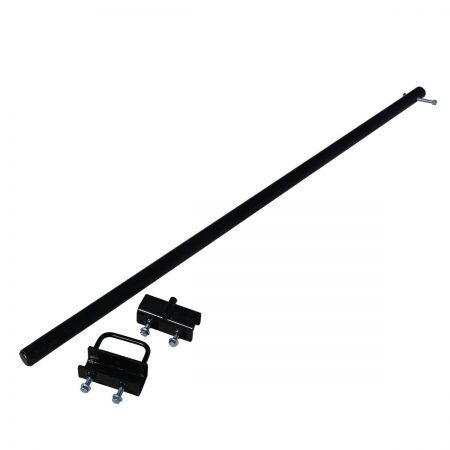

Calf Restrainer Bar
Keeps animals safely contained when both side doors are open during hoof trimming; size-adjustable.

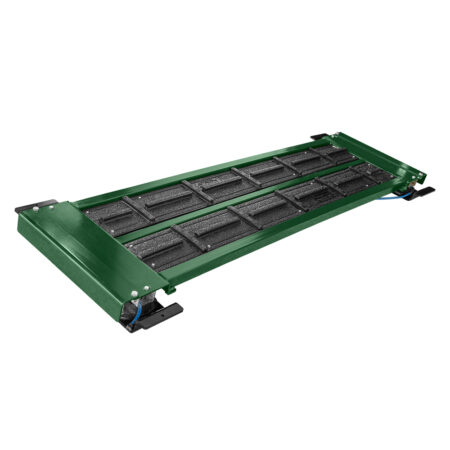

Weigh Platform Kit
Aluminum weigh platform for 8′ Easy Flow Alley (¼″ plate with high traction), works with load bars.

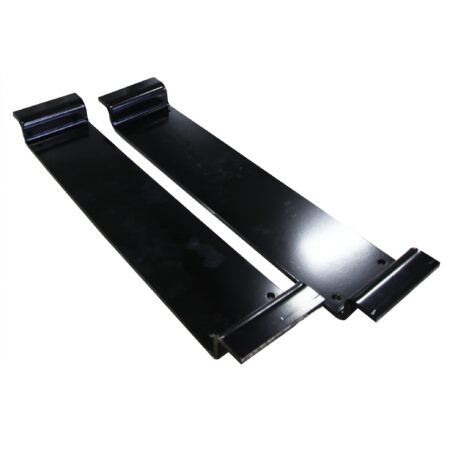

Scale Mount Plates
Plates for 23″ load bars for use with the alley weigh platform; compatible with Gallagher or Tru-Test scales.
