Portable Cattle Tub & Alley
by ArrowQuip
SKU PTA
Original price
$18,500.00
-
Original price
$18,500.00
Original price
$18,500.00
$18,500.00
-
$18,500.00
Current price
$18,500.00
✓ Authorized Dealer
✓ For Questions Call +1 (800) 555-5555
✓ Manufacturer's 1 Year Warranty

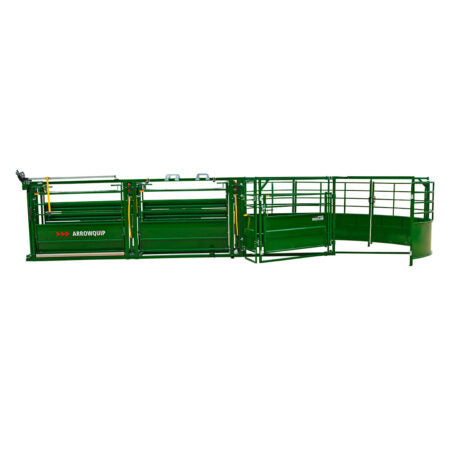

The Arrowquip Portable Cattle Tub & Alley has been upgraded to provide you with more capacity and features to make working cattle simpler, no matter where you are. Featuring an enhanced portable system frame found in all Arrowquip portable models and a NEW collapsible tub that folds inward for safe towing. With an adjustable hitch, thick structural beams, and a single-point jacking system, setting up and taking down this portable unit can be done in under 5 minutes, saving you time and making your life easier.
SPECIFICATIONS
- Two cradle-shaped 8’ Adjustable Cattle Alley sections range from 29.5″ to 18″ in width
- Optional Panel Hangers to carry additional panels (2 low-pressure panels per alley side)
- Both sides of the Easy Flow Alley can be adjusted from one side
- Both side panels drop down fully, allowing the handler to access the animal in case of emergency
- Easy Flow Alleys come with removable panels so you can control what cattle can see
- Safety latches on the Easy Flow Alley side panels ensure the sides will not drop accidentally
- The cattle tub folds in on itself for compact transport
- Solid bow on the tub frame ensures quick setup

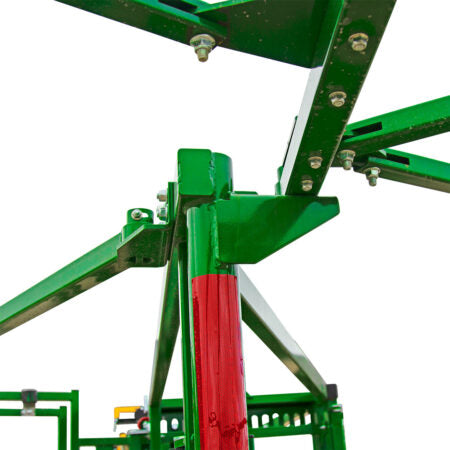

- Joiner Bars are welded on the tub for seamless installation
- Tub measures just 44″ wide when panels are folded in

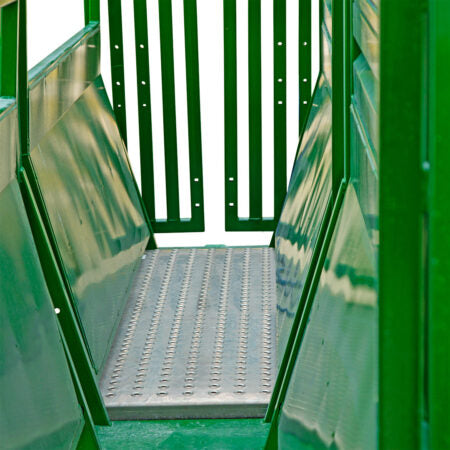

- Rolling Door between alleyways to improve flow and allow for weighing
FEATURES

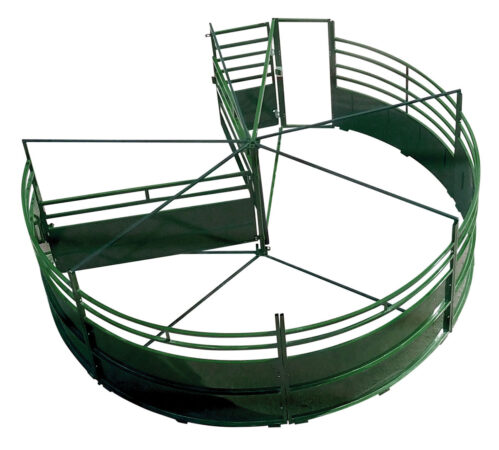

3E System
The 3E BudFlow system allows cattle to see more light, giving them the impression they are escaping rather than entering an enclosed space. This greatly improves cattle entry into the tub and prevents hold-ups as they enter the alley. With the BudFlow Tub upgrade, you can also connect other components—such as additional alleys and a loading chute—via the 3E door.

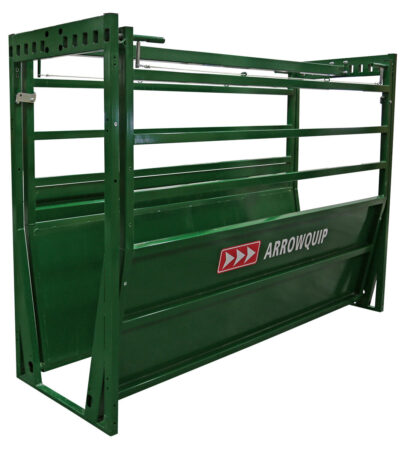

Easy Flow Cattle Alleys
The Easy Flow Adjustable Cattle Alley comes with two removable panels per section to control cattle visibility. The improved design adds length, allowing a wider configuration for larger animals.
Designed to Move
A rugged, gusseted hitch bracket adjusts to three positions to suit a variety of towing vehicles. Wheels install easily with two pins, and you have the option of a 2.8″ ball hitch or pin hitch for your towing needs.

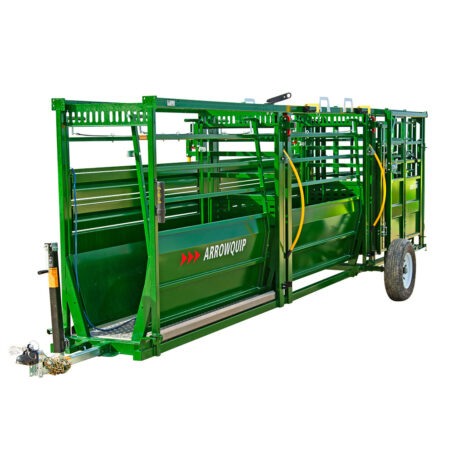

Most Compact Towing Package Ever
With its folding design, this unit measures just under 8 ft long when stowed for transport—making it extraordinarily easy to tow and maneuver.
AVAILABLE MODELS
| Model | Weight | Dimensions (Set-Up) | Key Feature |
|---|---|---|---|
| 3E BudFlow | 3,483 lbs | 180″ W × 84″ H × 416″ L | Enhanced light and visibility for smoother cattle flow. |
| Crowding Tub | 2,847 lbs | 103″ W × 84″ H × 416″ L | Sweep gate with lock-out prevents backward movement. |

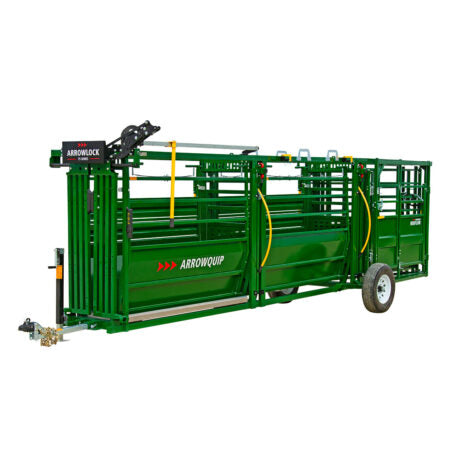

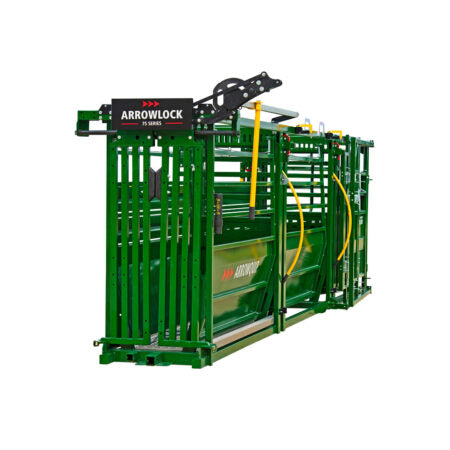

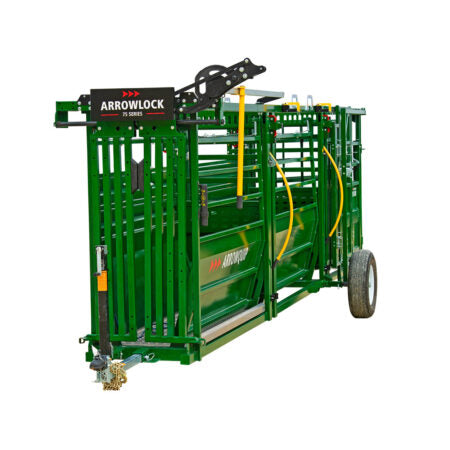

| PTA-HG BudFlow | 3,730 lbs | 180″ W × 99″ H × 416″ L | BudFlow integrated with Arrowlock head gate for enhanced control. |
| PTA-HG Crowding Tub | 3,364 lbs | 103″ W × 99″ H × 416″ L | Crowding Tub paired with Arrowlock head gate. |
| PTA-RLDR BudFlow | 3,571 lbs | 180″ W × 84″ H × 416″ L | BudFlow with rolling alley gate for in-unit weighing. |
| PTA-RLDR w/ Crowding Tub | 3,212 lbs | 103″ W × 84″ H × 416″ L | Compact Crowding Tub with rolling gate—efficient flow. |
