Powerlock 108 Series Portable Chute for Cattle, Alley & Tub

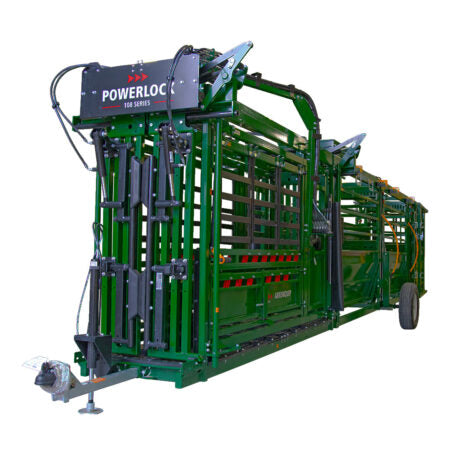

Powerlock 108 Series Portable Hydraulic Cattle Chute, Alley & Tub combines a fast, precise hydraulic squeeze chute with an 18′ Easy Flow adjustable alley and a foldable cattle tub, all on a towable frame. Hydraulics on a pivoting swing arm give you control from either side, while 3E low-stress design cues help cattle see where to go and keep them moving calmly.

FEATURES

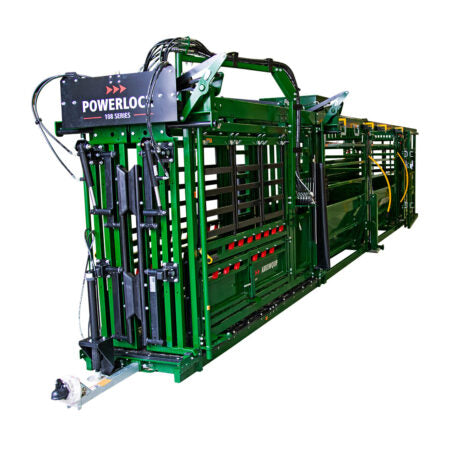

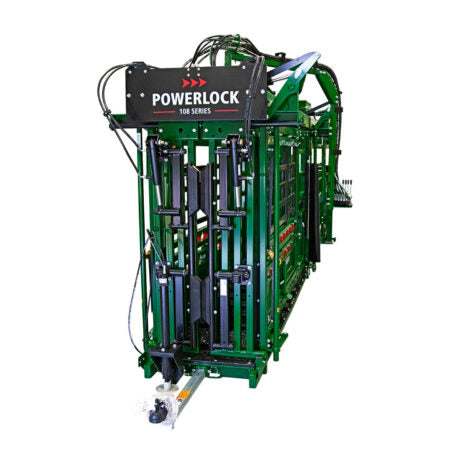

Powerlock 108 Hydraulic Chute

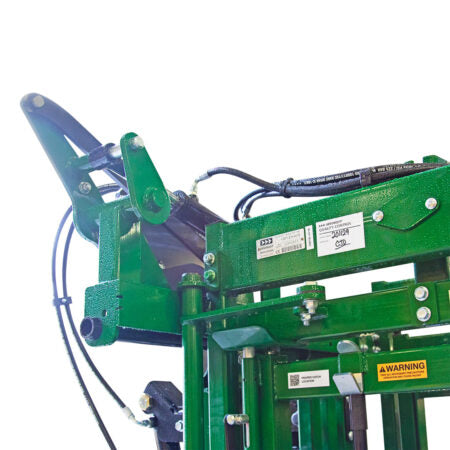

Rapid-response hydraulics with a pivoting swing arm let you run the squeeze from multiple positions. 3E components at the front encourage cattle to enter and settle quickly for efficient processing.

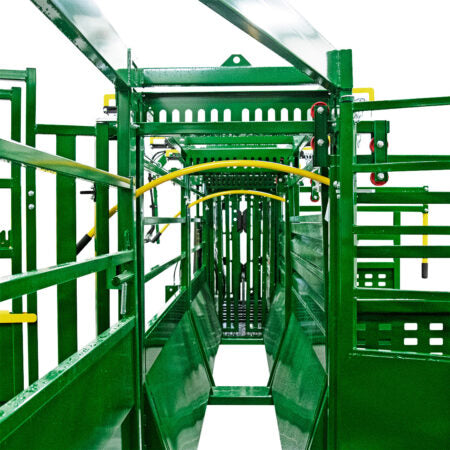

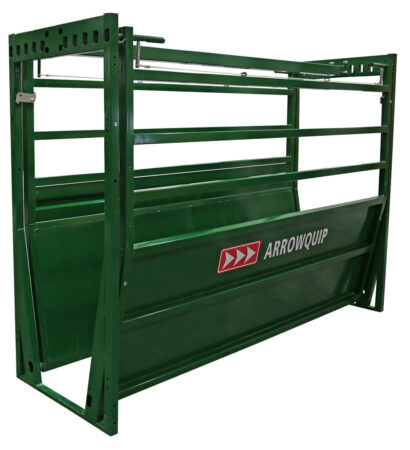

18′ Easy Flow Cattle Alley

Extra alley length means fewer stop-and-go moments. Removable side panels let you manage sightlines so cattle follow the intended path naturally.

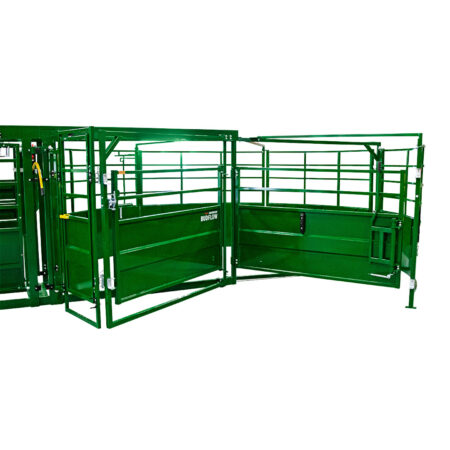

Redesigned Collapsible Tub

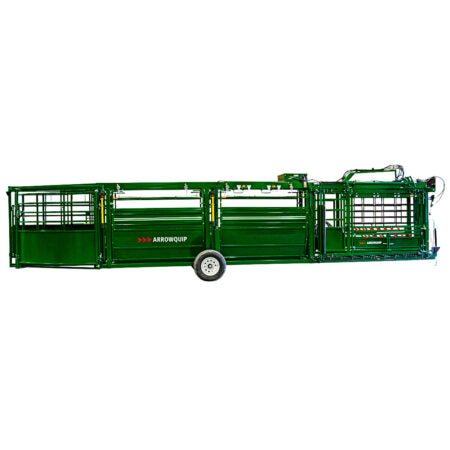

Welded joiner bars speed up setup and takedown. The tub folds in on itself for transport, shortening the unit for safer, more compact towing.

Built-In Safety

Full emergency side exits on the chute and alleys, wide-opening vet doors, and thoughtful access points help you work animals safely and confidently.

SPECIFICATIONS

• Hydraulic squeeze range: 31.5″ open to 7.75″ closed
• Hydraulic controls on a pivoting swing arm
• Barred head gate uses light to draw cattle forward; curtain-style head gate opens to a full 31.5″
• Two rows of poly-composite rump fingers
• Vet doors open a full 180°
• Full side emergency exit and swing-out bottom access doors
• Six removable side access panels (multiple configurations)
• True virgin infinite rubber floor with lifetime guarantee
• Easy Flow alley cradle width: 31.5″ to 21″ with safety latches on adjustments
• Folding cattle tub for compact towing; welded joiner bars on tub frame

AVAILABLE MODELS

AVAILABLE ADD-ONS / OPTIONS

• Hydraulic Head Sweep — holds the head gently via chute hydraulics
• 4th-Gen Cattle Head Holder — single-lever push-pull restraint for close-up work
• Sternum Bar — supports the chest; sheeted to reduce hoof traps
• Balk Gate — prevents escape if an animal misses the head gate

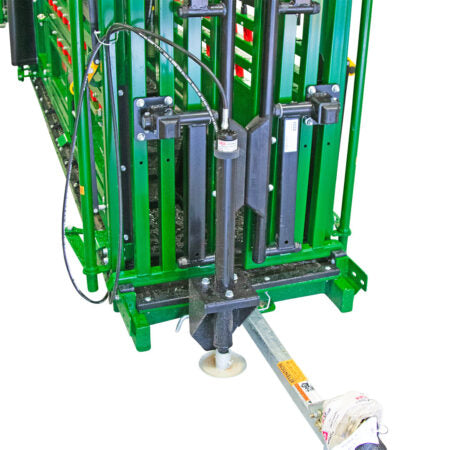

• Wheel Kit — convert the chute for towing quickly
• Lug Post Kit — bolt-on posts to connect corral panels to the head gate
• Calf Restrainer Bar — keeps animals contained with side doors open
• Electric Hydraulic Power Pack — 5 HP, 10-gal tank, 6.2 GPM (900 PSI; relief 1000 PSI)
• Gas Hydraulic Power Pack — 7 HP, 10-gal tank, 6.2 GPM (900 PSI; relief 1000 PSI)
• Tractor Hydraulic Hook-Up — power the chute from tractor hydraulics
• Stealth Upgrade Electric Power Pack — ~silent 7.5 HP, 10-gal tank, 10.9 GPM (900 PSI; relief 1000 PSI)
