The General Hydraulic Cattle Chute

The General Hydraulic Cattle Chute

by ArrowQuip
SKU 5S-GEN
$32,850.00 - $32,850.00
$32,850.00
$32,850.00 - $32,850.00
$32,850.00

✓ Authorized Dealer
✓ For Questions Call +1 (800) 555-5555
✓ Manufacturer's 1 Year Warranty
Request a quote

The General Heavy-Duty Hydraulic Cattle Chute is built for feedlot and large-scale cattle operations demanding unmatched flow, access, and durability. With features like a three-way floating squeeze pattern, live-floor performance, and bolt-on parts for easy replacement, it’s engineered for high use every single day.

FEATURES

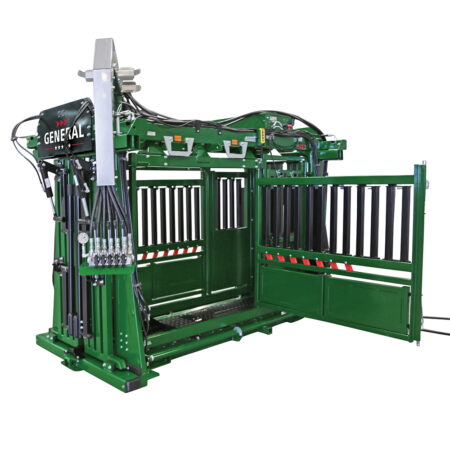

Emergency Exit Opened on The General Hydraulic Chute

Three-Way Floating Squeeze with Live Floor

Switch between parallel squeeze for ideal flow, V-squeeze to support larger or tall animals, or A-squeeze for restless livestock—all while maintaining forward movement.

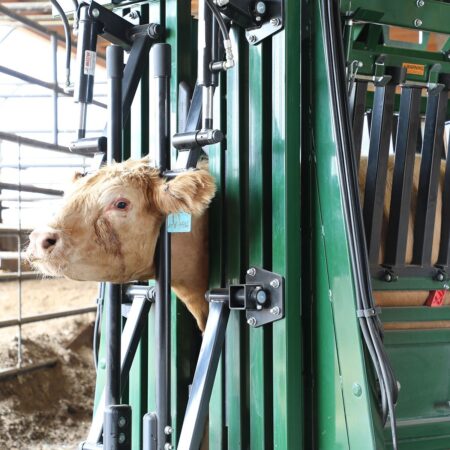

Neck Extenders being used on the General

Unmatched Access & Safety

Includes six drop-down side panels, split bottom access gates, swing-out emergency exits, and an XL vet cage for full, efficient access in every handling scenario.

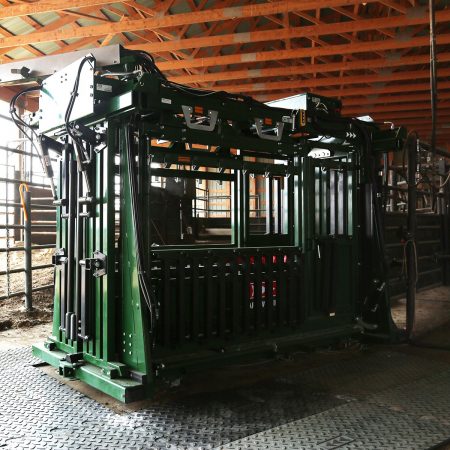

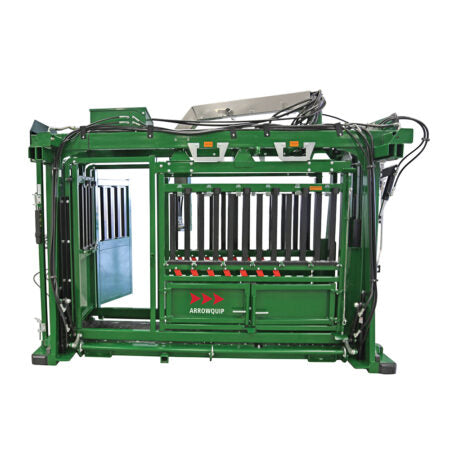

Full side access to cattle with 8 drop-down panels, split bottom doors, and XL palpation cage on The General

Hydraulic Neck Extenders

Smoothly extend and stabilize the animal’s head for injections or treatments. Extenders collapse flat against the head gate when not in use to avoid injury.

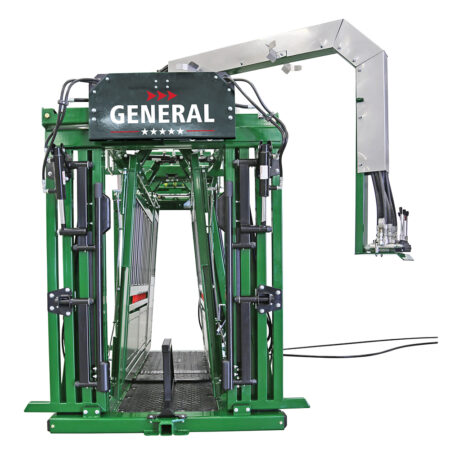

The General A-Squeeze

Heavy-Duty Construction

Built with 5/8″ top and 3/8″ bottom gussets, bolt-on parts for quick replacement, a live rocker floor, curtain-style gates, and a bevel-guarded floor—designed for feedlot intensity.

SPECIFICATIONS

  • Product Code: 5S-GEN
  • Weight: Approximately 4,083 lbs
  • Dimensions: 65″ Wide × 102″ High × 134″ Long
  • Full 31.5″ open head & tail gates
  • 3-way squeeze system: Parallel, V-Squeeze, A-Squeeze
  • Live floor operation with hydraulic pivoting swing-arm control
  • Steel floor pans with lifetime rubber surface for quiet traction
  • 6 drop-down panels per side, emergency exit doors, split bottom access
  • XL veterinary cage access
  • Removable bolt-on wear parts for minimal downtime

AVAILABLE MODELS

Model Product Code Weight Notes
The General Hydraulic Cattle Chute 5S-GEN Approx. 4,083 lbs Heavy-duty, feedlot-grade hydraulic chute with live floor and full access features.

AVAILABLE ADD-ONS / OPTIONS

  • Hydraulic Neck Extenders — extend the head smoothly and fold flat when not in use.
  • Calf Restrainer Bar — keeps calves safely contained during side-door access or hoof care.
  • Sternum Bar — prevents animals from lying down; fully sheeted to reduce hoof entrapment.
  • Traction Kit — bolt-on floor grip for improved footing.
  • Power Packs — options include 7 HP Gas, 7.5 HP Silent Electric (single/three-phase), or Tractor Hydraulic hookup.

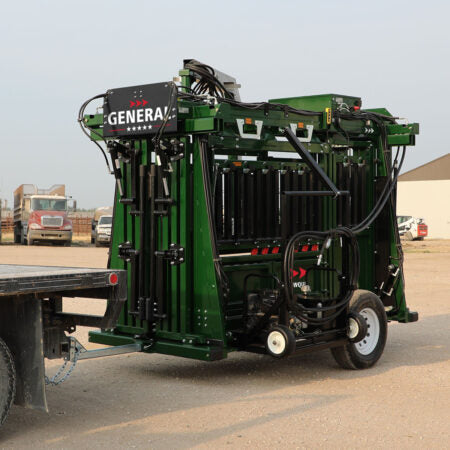

  • Portable Kit — includes jacks and easy-install wheel kit for chute relocation.
